My-Laser (Diode CNC)¶
Welcome to the My-Laser documentation hub. This machine is our versatile and highly accessible entry point into digital fabrication and laser engraving. Designed with the true DIY maker in mind, it combines accessible diode laser technology with 3D-printable components, making it the perfect project to start your laser CNC journey.
Work In Progress (WIP) - Active Development
The MY-Laser Diode project is currently in the prototyping phase.
Our goal is to deliver a highly accessible, lightweight, yet rigid desktop laser engraver. The mechanical assemblies, diode mounting systems, and exact Bill of Materials (BOM) are actively being tweaked to maximize engraving precision and speed.
Ready to bring your desktop projects to life? Independent sourcing during this phase might result in mismatched belts, rails, or diode brackets. To ensure you get the exact hardware we are testing and to support our Open Source project, we highly recommend getting your components directly from the MY-Machines Official Store.
Key Features¶
- Open Source Printable Parts: All essential 3D printable components are available for free to the community, allowing you to build and upgrade your machine at your own pace.
- Accessible Architecture: Built using standard hardware and aluminum extrusions, keeping the Bill of Materials (BOM) simple, scalable, and affordable.
- Precision Height Adjustment: Features a reliable Z-axis height adjustment system (remixed from community creator PLAY3Rone977), ensuring your focal point is always dead-on.

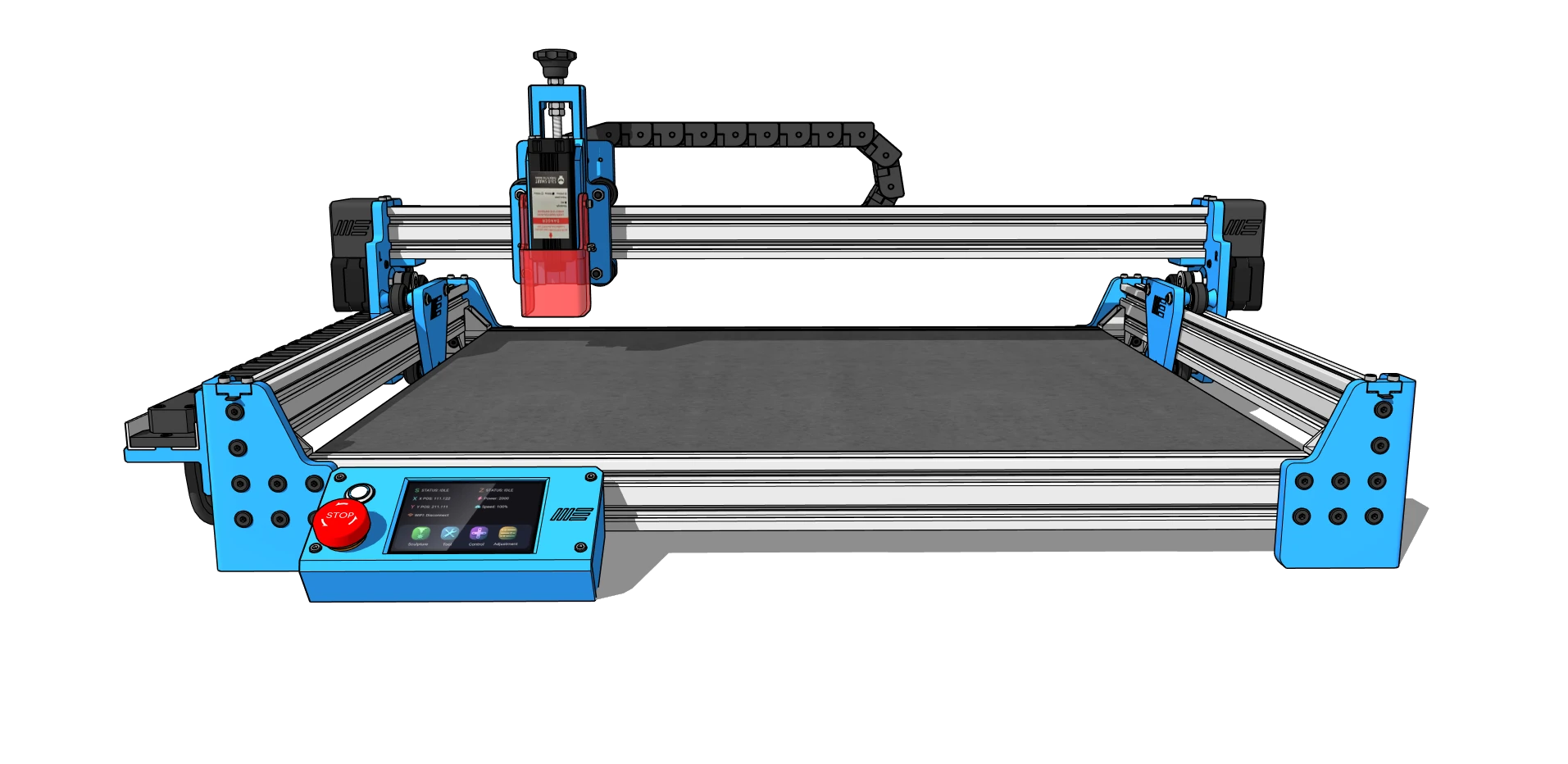

- Complete Digital Twin: For makers who want to explore the entire structural DNA, a complete SketchUp CAD model is available, fully embodying our Maker Education philosophy.
Explore the Documentation¶
Navigate through the sections below to start building, configuring, and operating your My-Laser safely.
-
Get to know the machine, its capabilities, and the essential tools you will need before starting the build.
-
Step-by-step instructions to assemble the frame, mount the 3D printed parts, and wire the electronics.
-
Configure your firmware and set up powerful control software like LightBurn or LaserGRBL for your diode module.
-
Keep your machine running smoothly. Find solutions for common mechanical, wiring, or software issues.
Crucial Safety Warning: Laser Protection
Even though this is a diode laser, it is incredibly powerful. NEVER operate the machine without appropriate laser safety goggles calibrated for your specific diode's wavelength. Serious and permanent eye damage can occur instantly. Always operate the machine in a well-ventilated area or enclosure.
